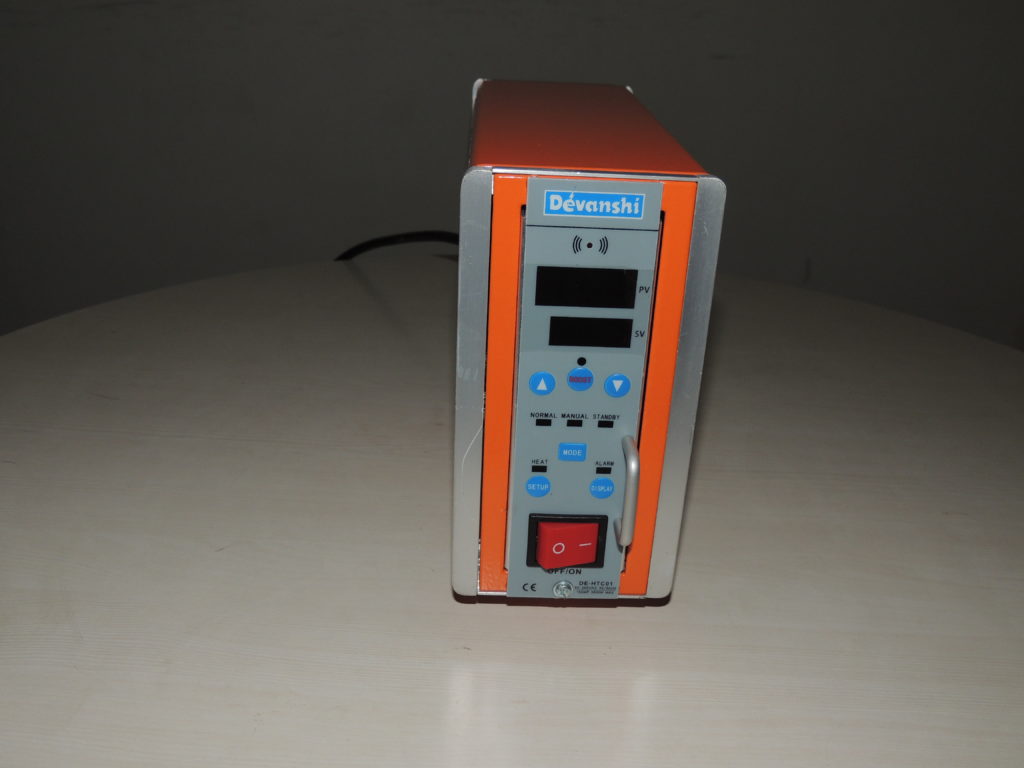

TC5E MODULE
Features:
- Dual SV temperature control
- Dual lines LED display
- Unit display
- Auto or Manual function
- PID auto temperature control
- Selectable two thermocouple types ( J / K )
- Selectable two temperature scales
- Selectable six alarm modes
- Selectable two output trigger modes ( Phase angle / Zero cross )
- Fuse break indicator
- Power frequency auto-detect
- Thermocouple break and inverse detect
Specification:
- Power input: 230 VAC ± 15 %
- Power frequency: 50 / 60 Hz
- Power consumption(MAX): 7W ( each module )
- Input impedance: 10M O
- Output wattage: 3600W, Every module 15A / 240Vac
- Storage temperature: -20 ~ 70 °C
- Work temperature: 0 ~ 50 °C
- Work humidity: 10 ~ 80 % RH. ( non-condensing )
- Control accuracy: ± 0.25 % FS
- Measure accuracy: ± 0.25 % FS
- K TYPE Thermocouple range: 0 ~ 600 °C ( 32~999 °F )
- J TYPE Thermocouple range: 0 ~ 600 °C ( 32~9999 °F )
